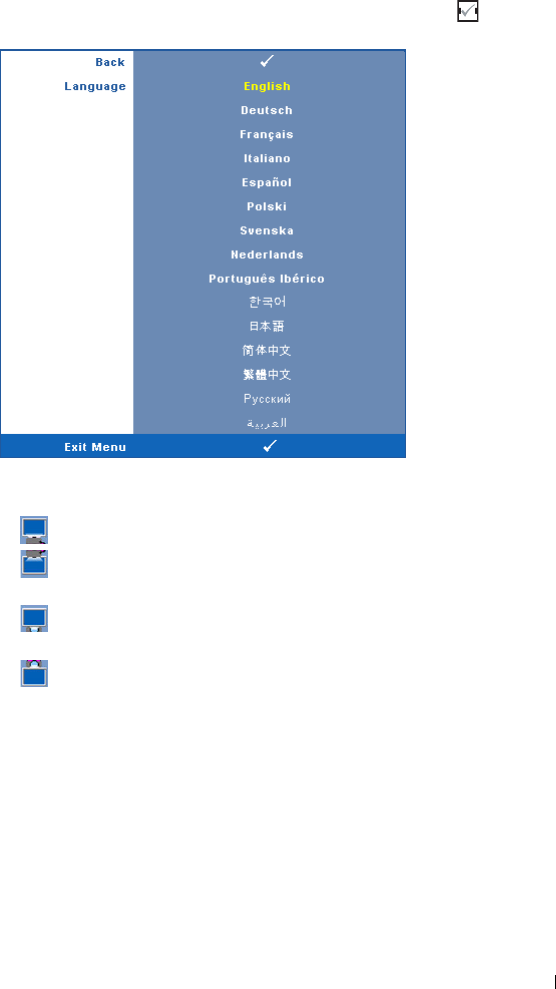

LANGUAGE—Allows you to set the language for the OSD. Press to activate the

Language menu.

ROJECTOR MODE—Allows you to select the projector mode, depending upon how

the projector is mounted.

• Front Projection-Desktop — This is the default option.

• Front Projection-Ceiling Mount — The projector turns the image upside

down for ceiling-mounted projection.

• Rear Projection-Desktop — The projector reverses the image so that you can

project from behind a translucent screen.

• Rear Projection-Ceiling Mount — The projector reverses and turns the image

upside down. You can project from behind a translucent screen with a ceiling-

mounted projection.

V. KEYSTONE—Manually adjust the vertical image distortion caused by tilting the

projector.

IGH ALTITUDE—Select On to turn on high altitude mode. Operates the fans at full

speed continuously to allow for proper high altitude cooling of the projector.

TANDBY VGA OUTPUT—Select On or Off the VGA output function at projector

standby status. Default is Off.

Using Your Projector 35
